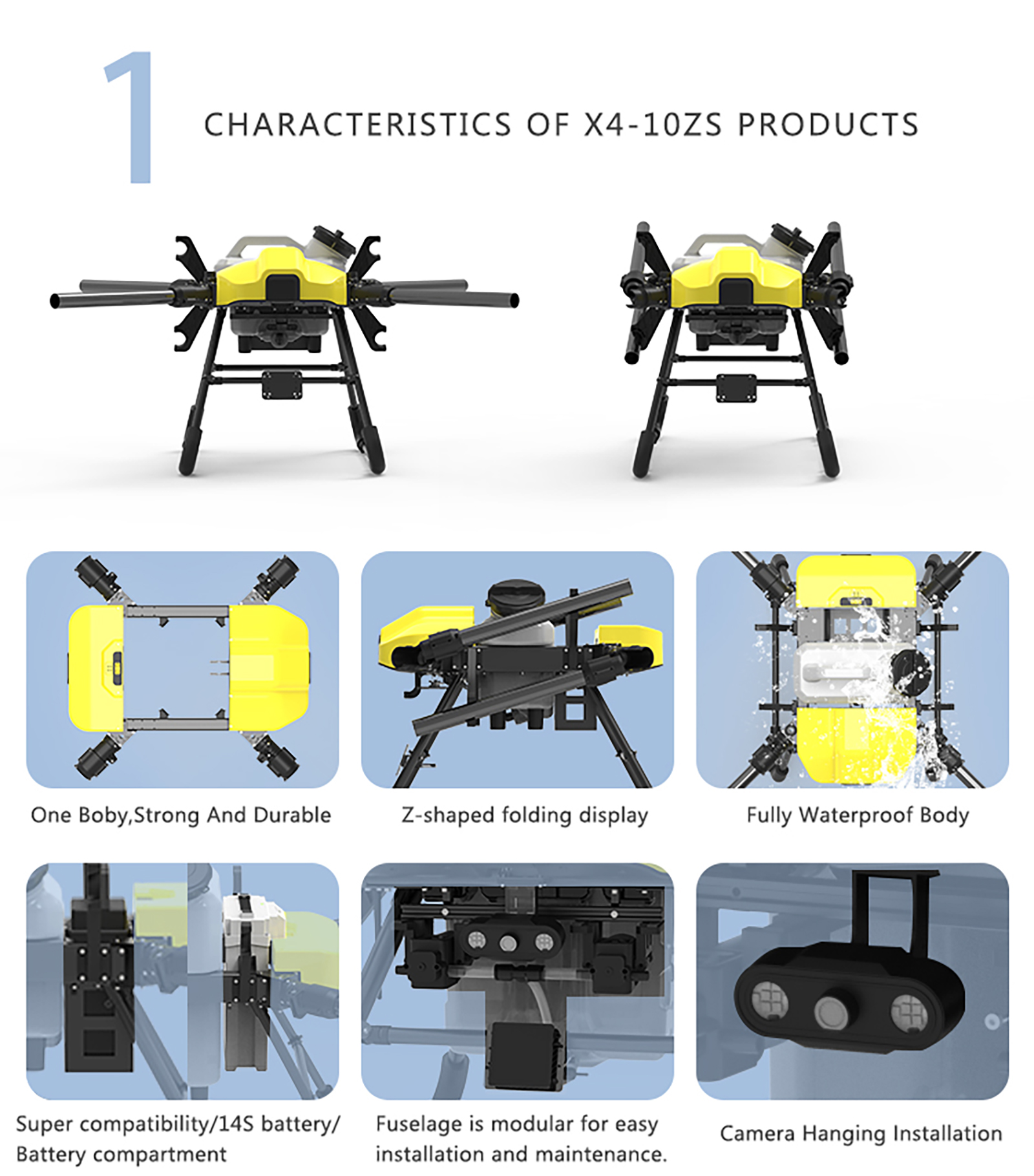

X4-10ZS plug-in agricultural drone plug-in structure

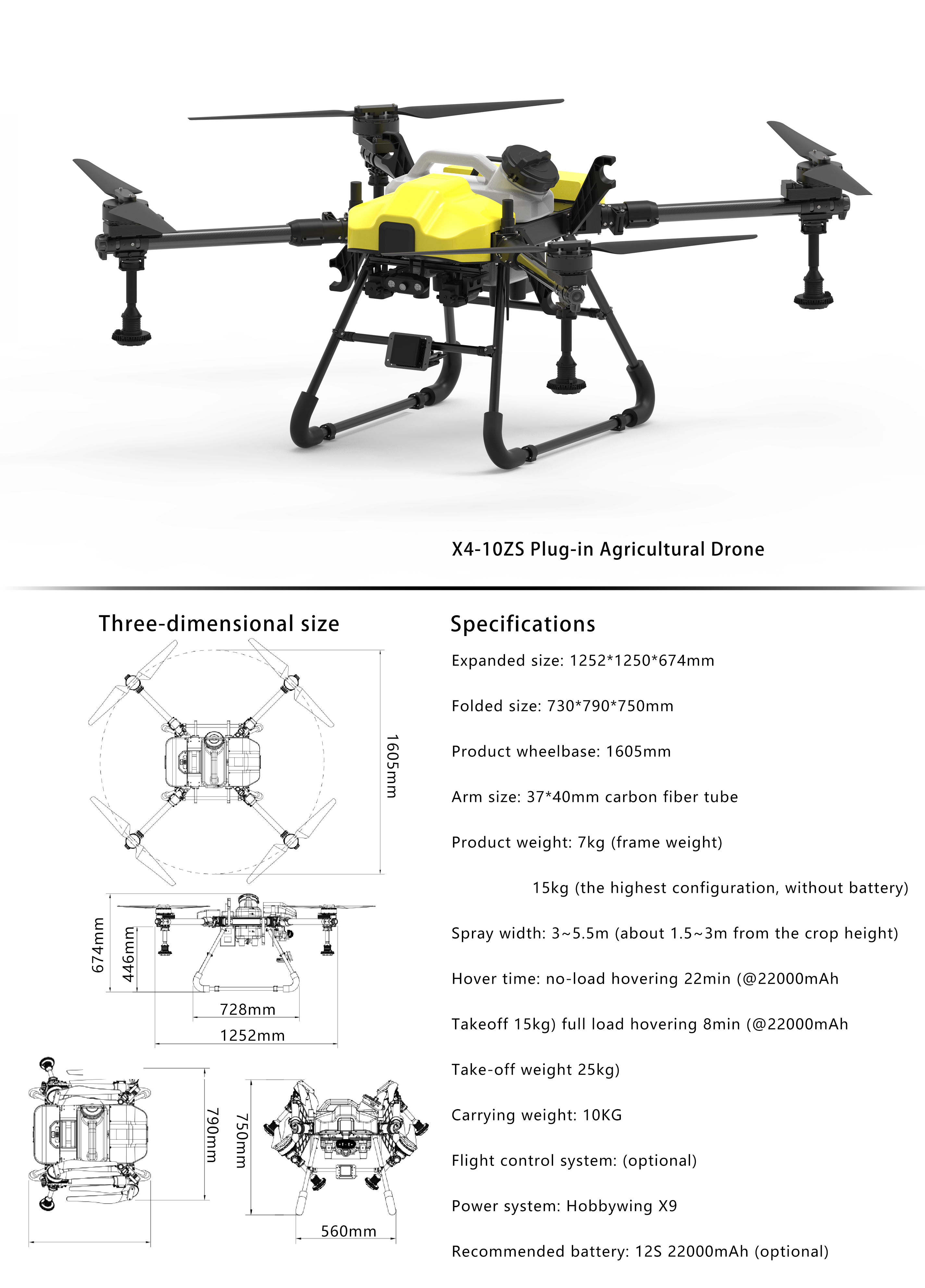

Basic parameters of 10kg plug-in rack:
Product Name: X4-10ZS
Product type: Structure of plug-in plant protection machine
Product weight: 15kg (maximum configuration, including battery)
7kg (rack with medicine box)

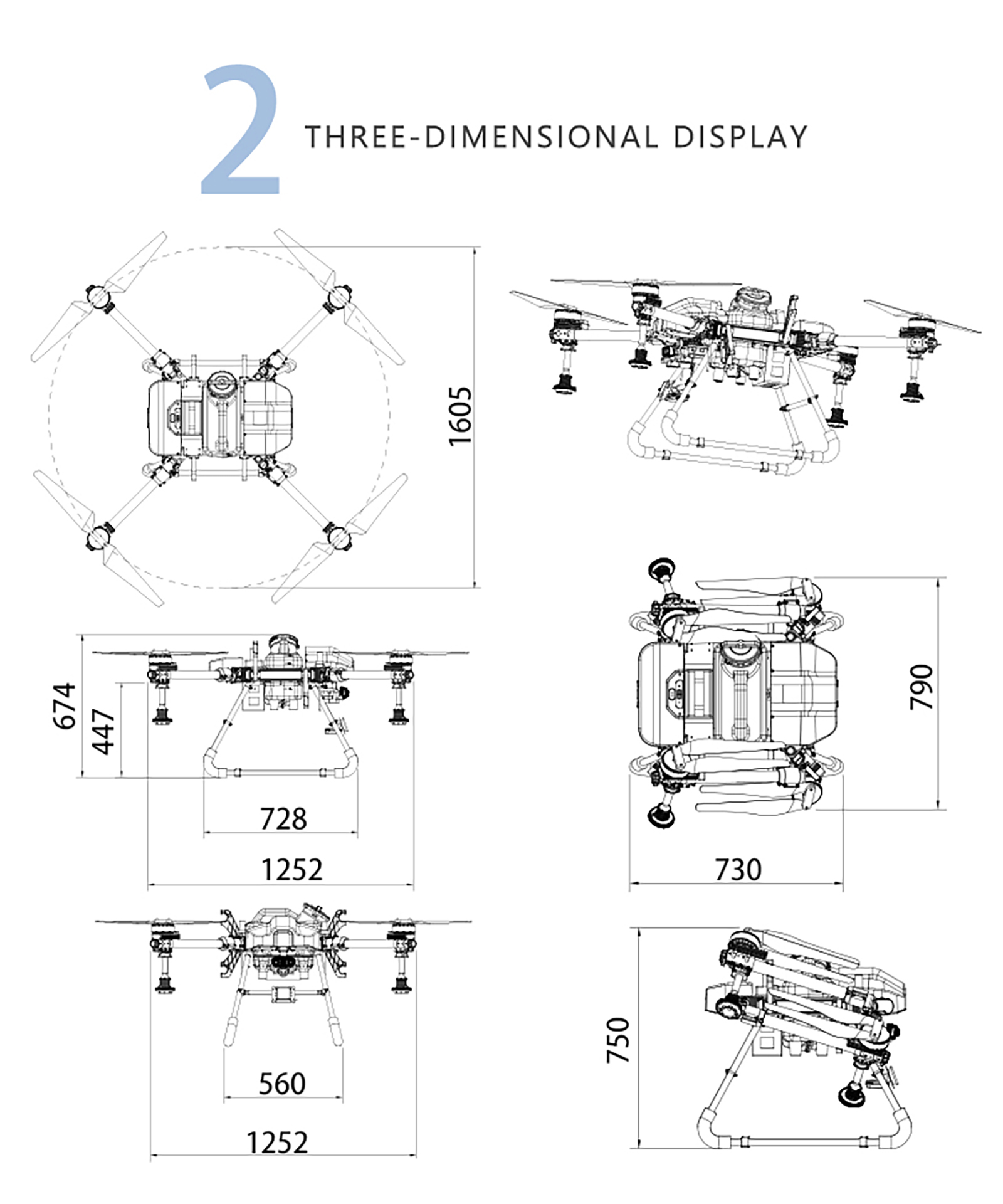

Unfolded size: 1252 * 1252 * 674mm
Folding size: 730 * 790 * 750mm
Product wheelbase: 1605mm
Arm size: 37 * 40mm carbon fiber tube

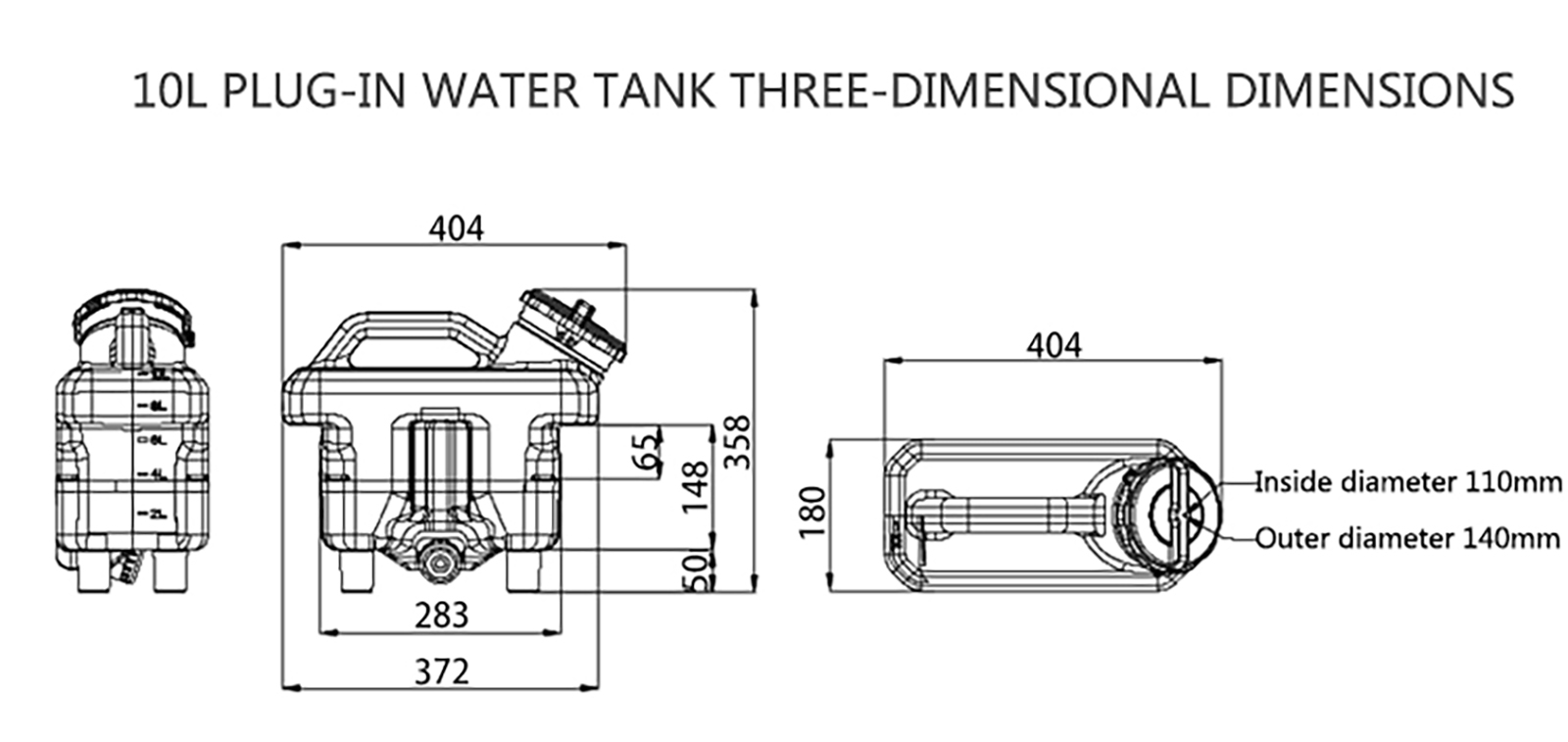

Medicine box volume: fully loaded with 10L (working load, fully loaded with 10KG)
Boxa homework box capacity: 25L (maximum internal load capacity, 25KG)
Hover time: No load hover for 25 minutes (@ 28000mAh&takeoff weight 15kg)
Spray full load hover for 12 minutes (@ 28000mAh&takeoff weight 25kg)
Broadcast full load hover for 11 minutes (@ 28000mAh&takeoff weight 35kg)
Homework spraying range: 5-8 meters (about 1.5-3M from crop height)
Recommended configuration: Flight control (optional)
Power system: X9/X9 plus
Battery: 12S 22000-28000mAh (optional)
