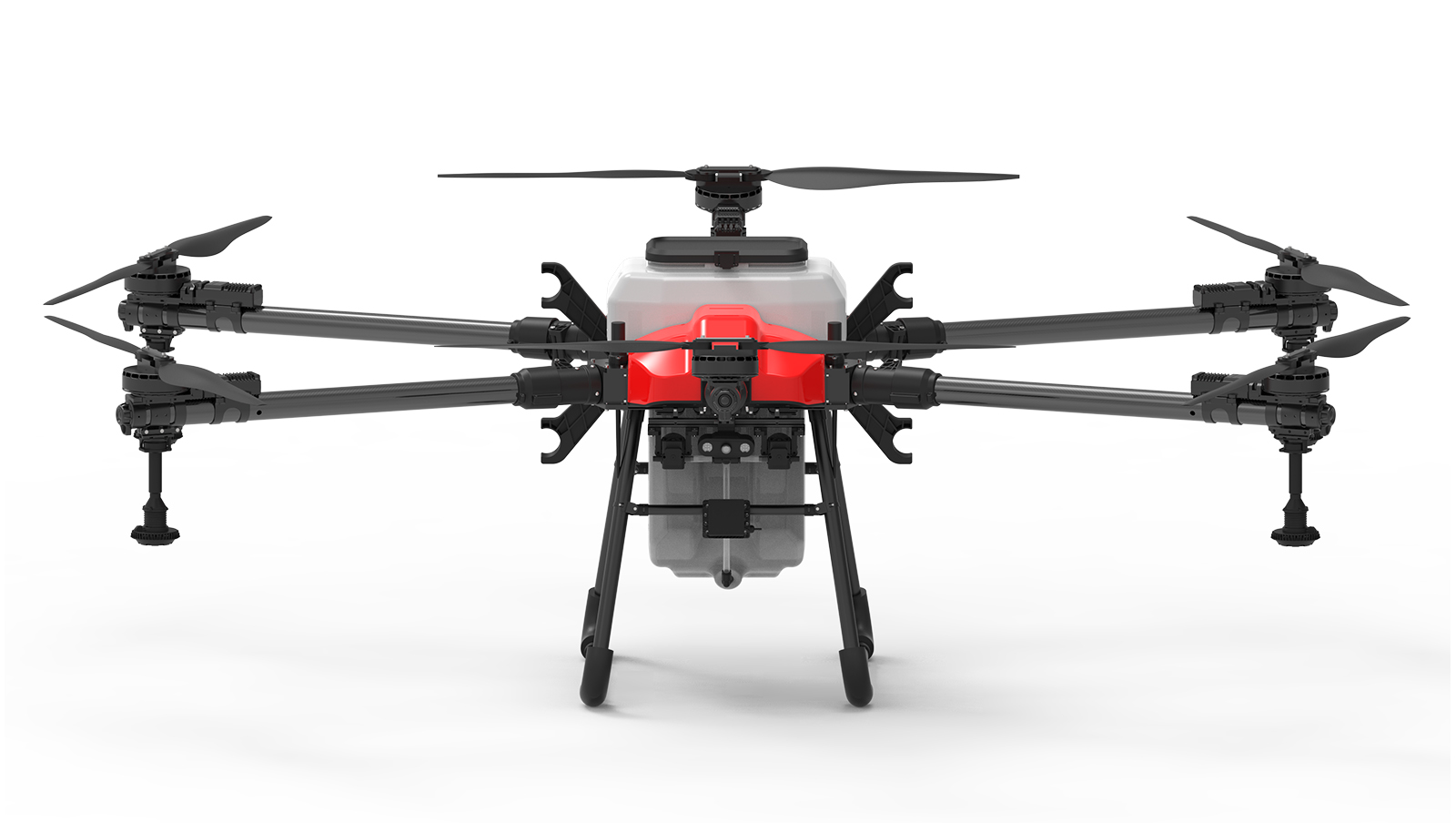

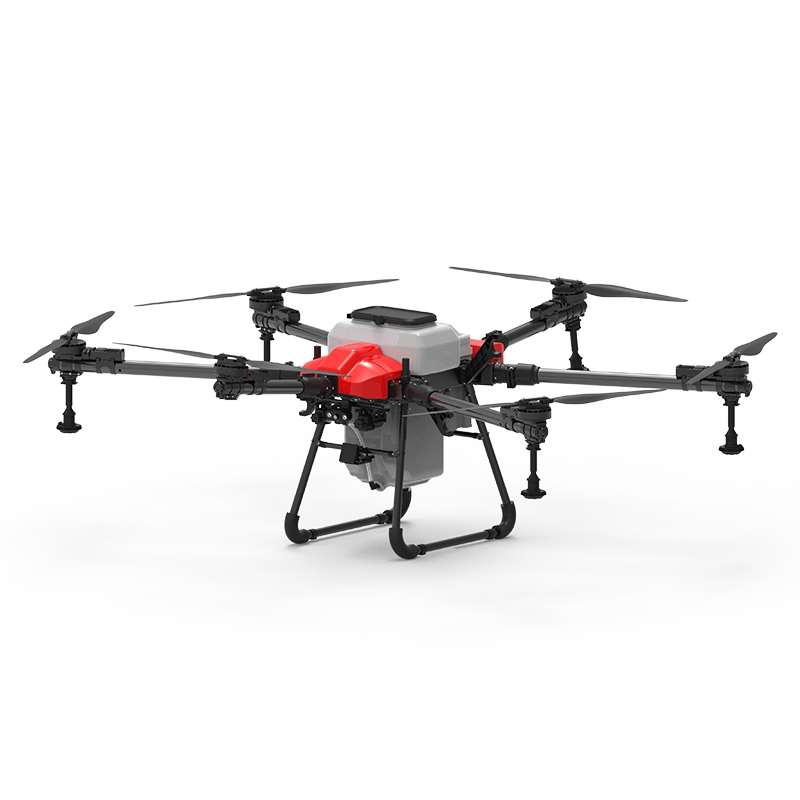

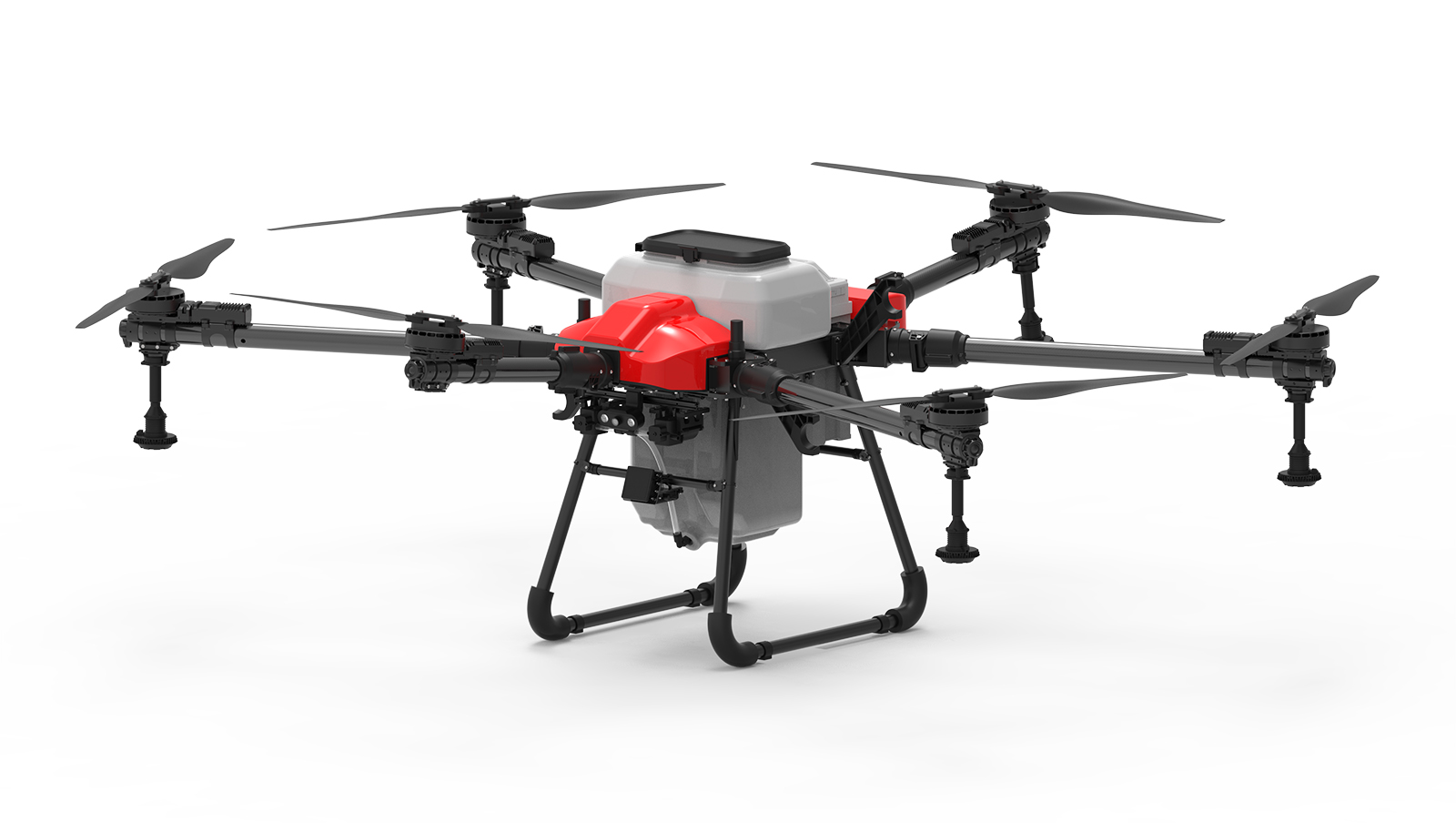

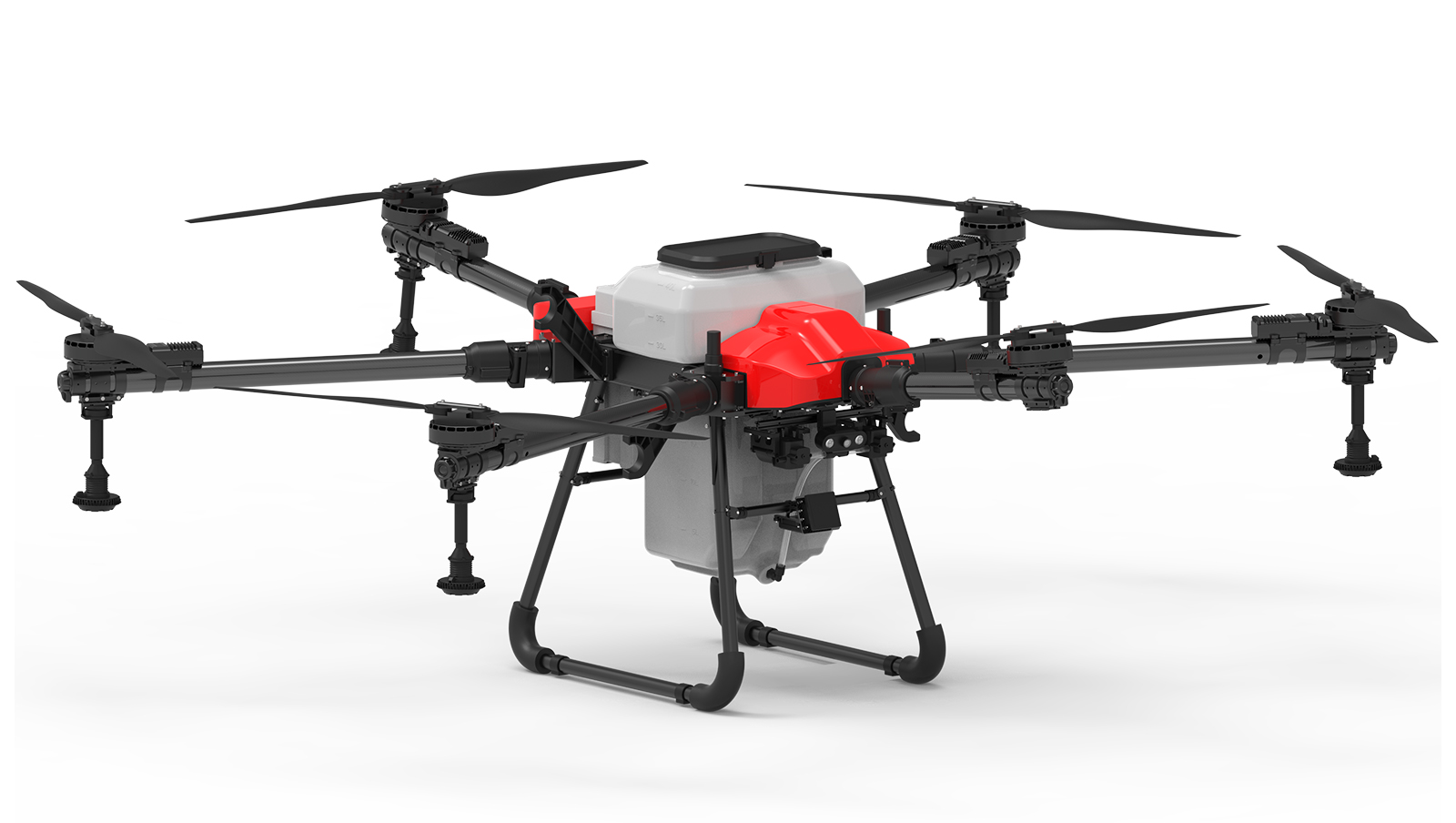

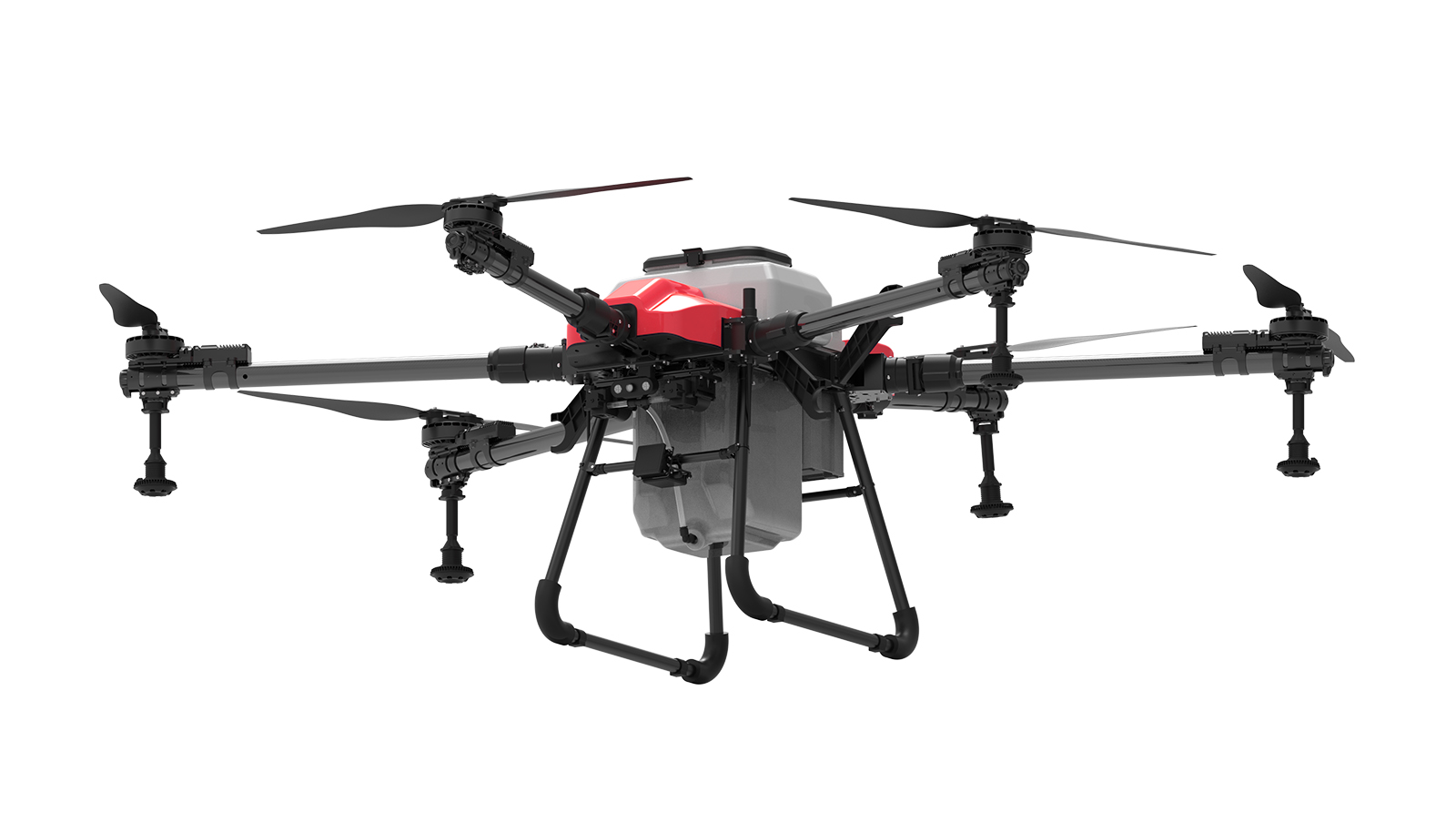

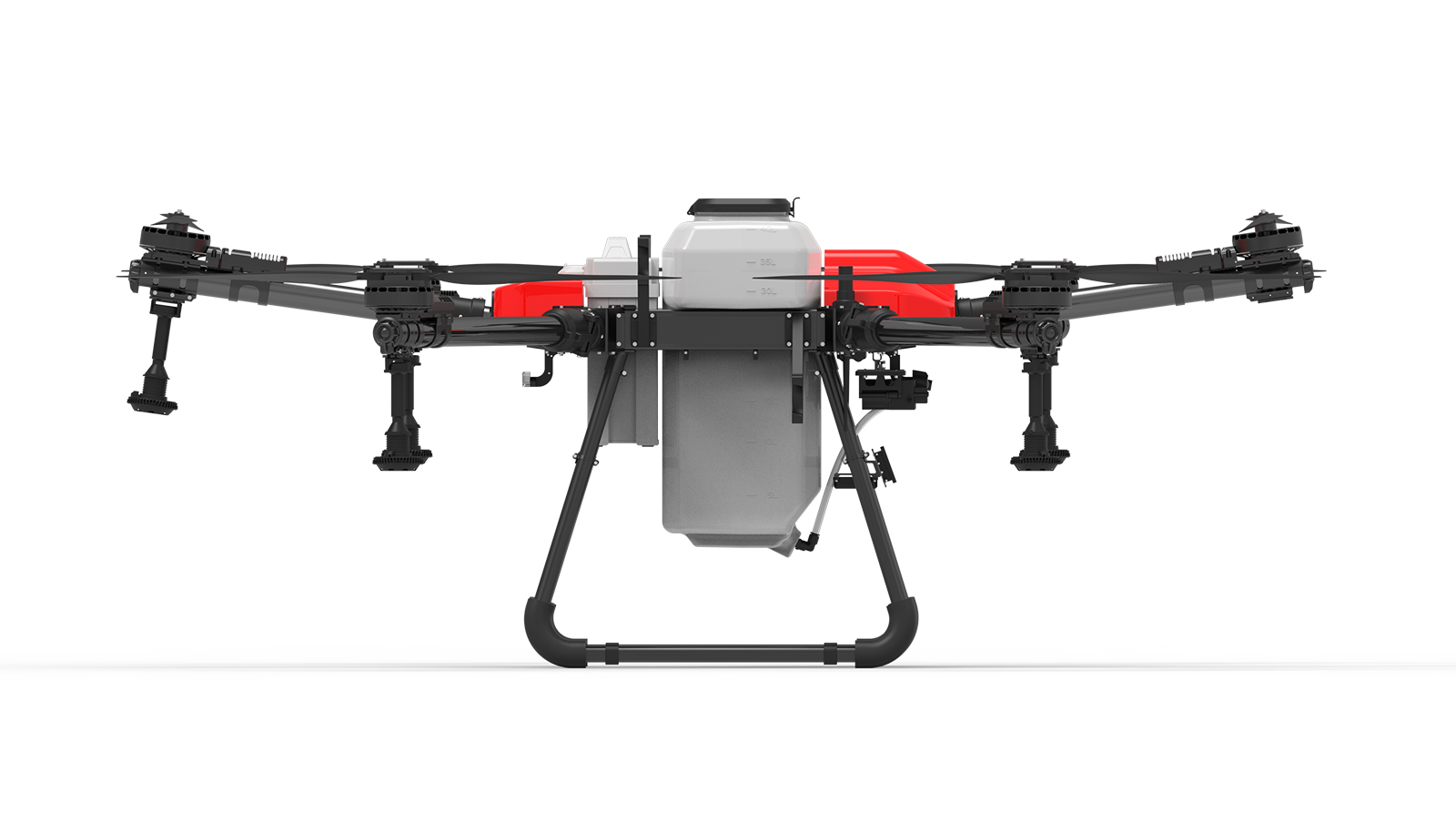

F40 plant protection drone

Product wheelbase: 2320mm
Product size: 2038*2188*807mm (expanded)

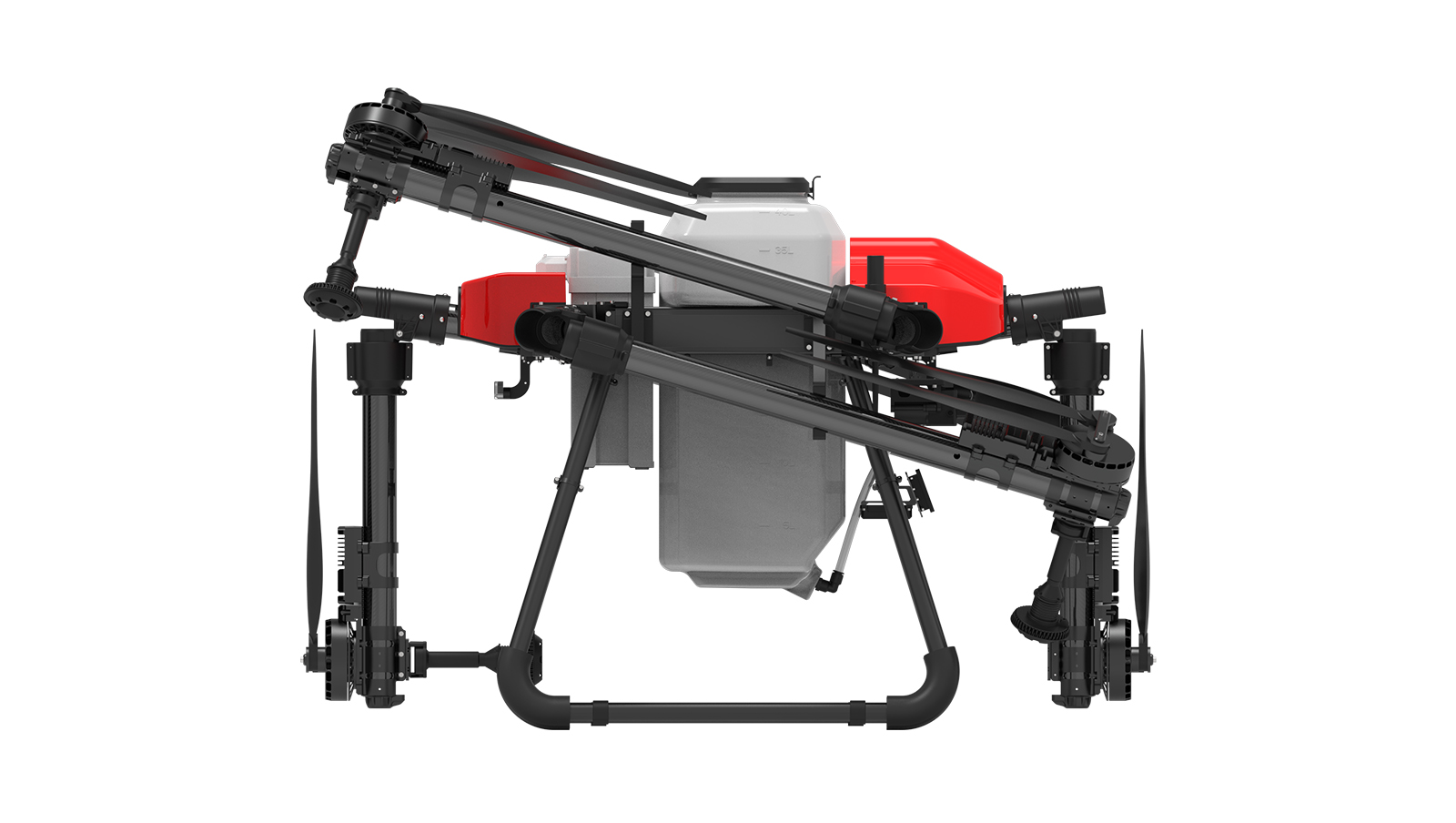

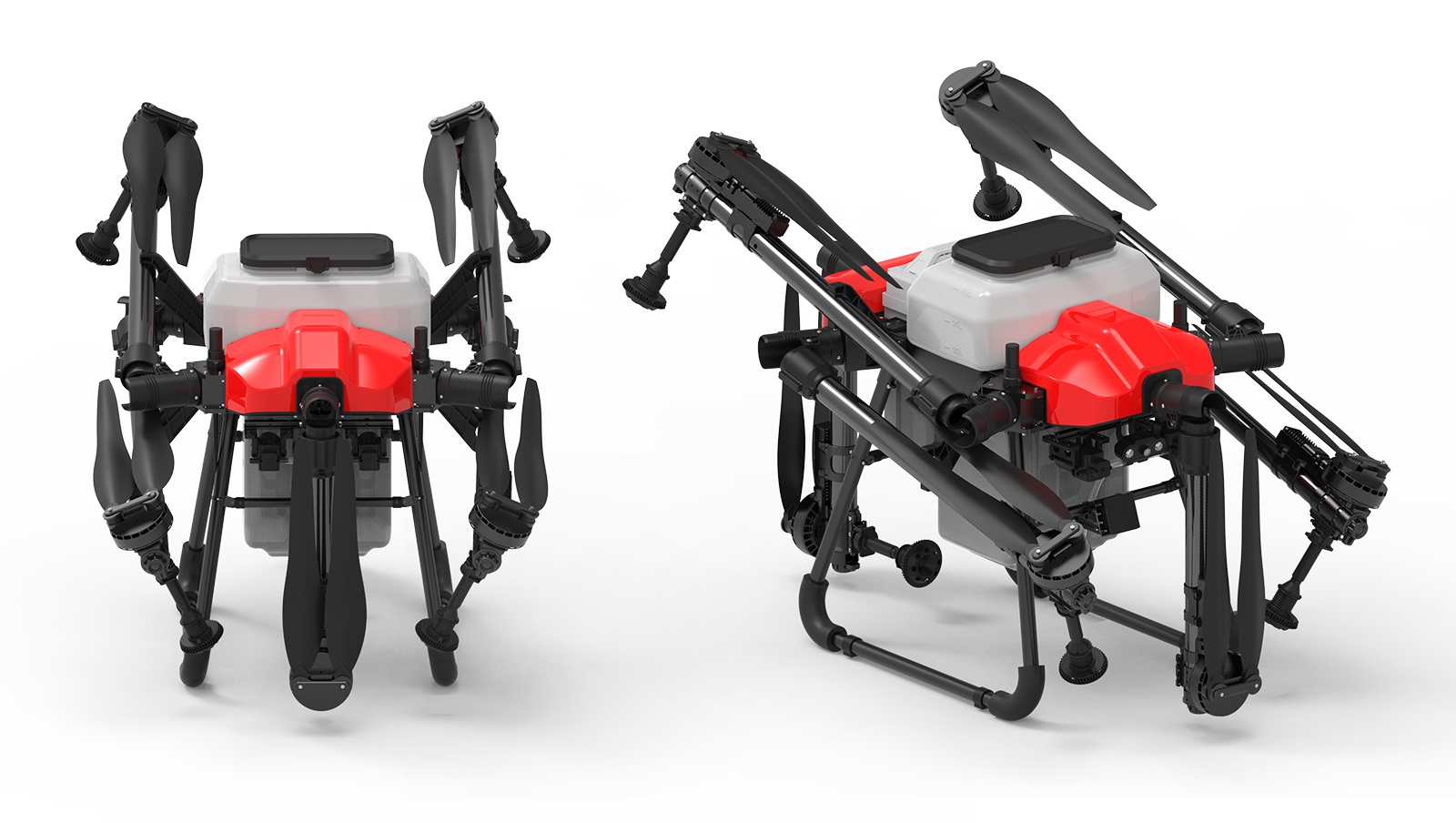

                     1248*826*934mm (folded)
Product weight: 1.94kg (40L water tank weight)
                          15kg (frame weight)
                          32kg (the highest configuration, without battery)
                          45.7kg (including battery weight)
                          85.7 (full load, takeoff weight)
Arm size: 47*50mm
Medicine box volume: 40L
Spreading box volume: 40L
Spray width: 6~10 meters
Working efficiency: 140 mu/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system: X11 95kv (motor)
150A (ESC)
41 inches (propeller)
Spraying system: 8L water pump (voltage:
DC44-60.9V)
Pressure sprinkler/centrifugal sprinkler kit
Battery: 18S 30000mAh
Spreading system: 360° large flow spreader
Hover time: 20 minutes (no-load hover 18S30000mAh)
7 minutes (full-load hover 18S
30000mAh)
    F-Series Agricultural Drones
    F40 has a new structural design, a modular design of the fuselage, super compatibility,
    equipped with a quick-plug water tank battery design, a front and rear folded quadrotor
    design, a front dual water pump splitting quick release module, equipped with obstacle
    avoidance radar and ground defense Radar expansion, front FPV first viewing angle
    provides clear image feedback, strong power, lightweight design of the whole body, small
    size, large load, easy to carry and work. Maximum payload volume 40L









    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
