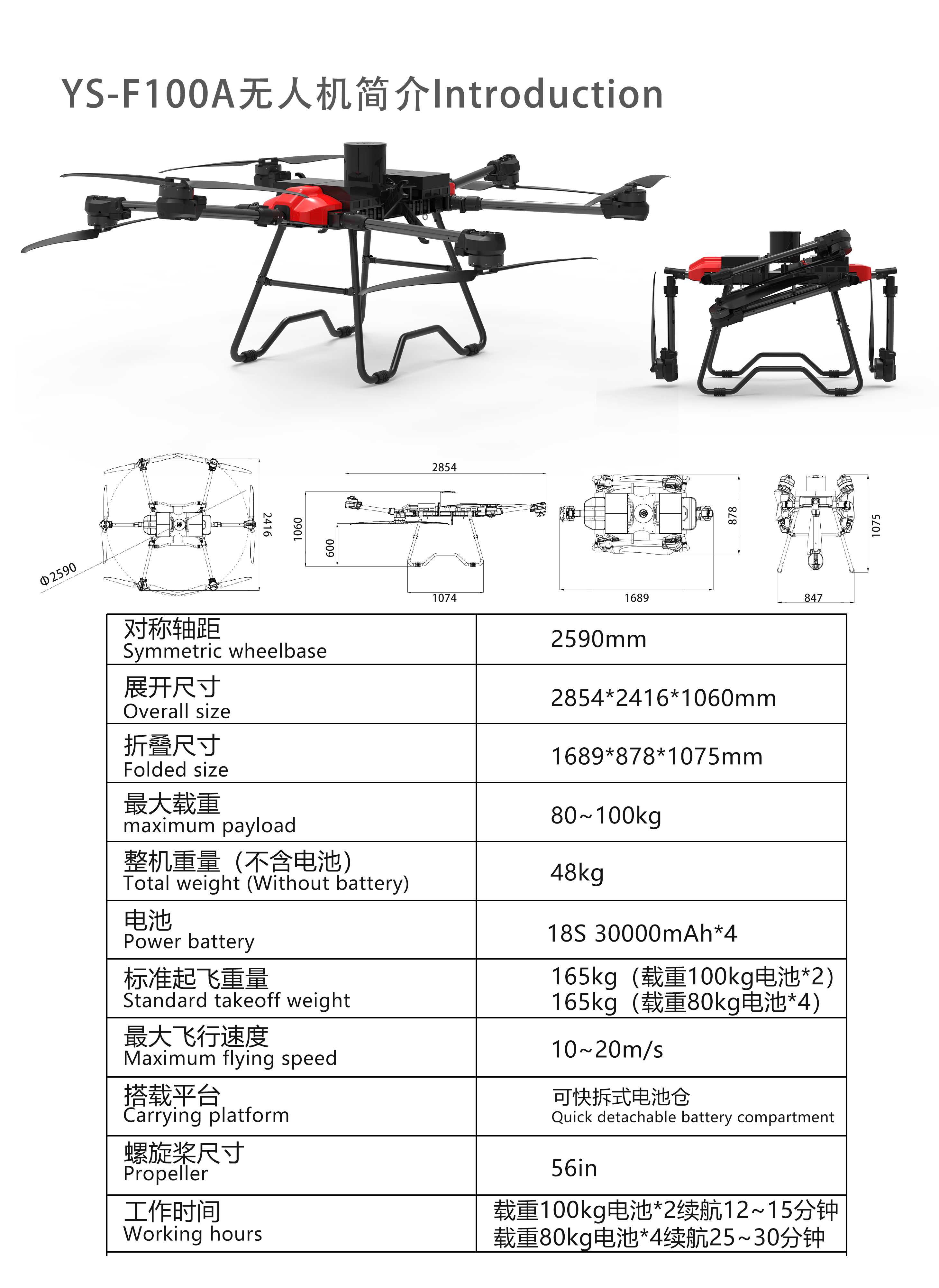

YS-F100A Industry application of drones 2024 V2.0
Product wheelbase: 2590mm

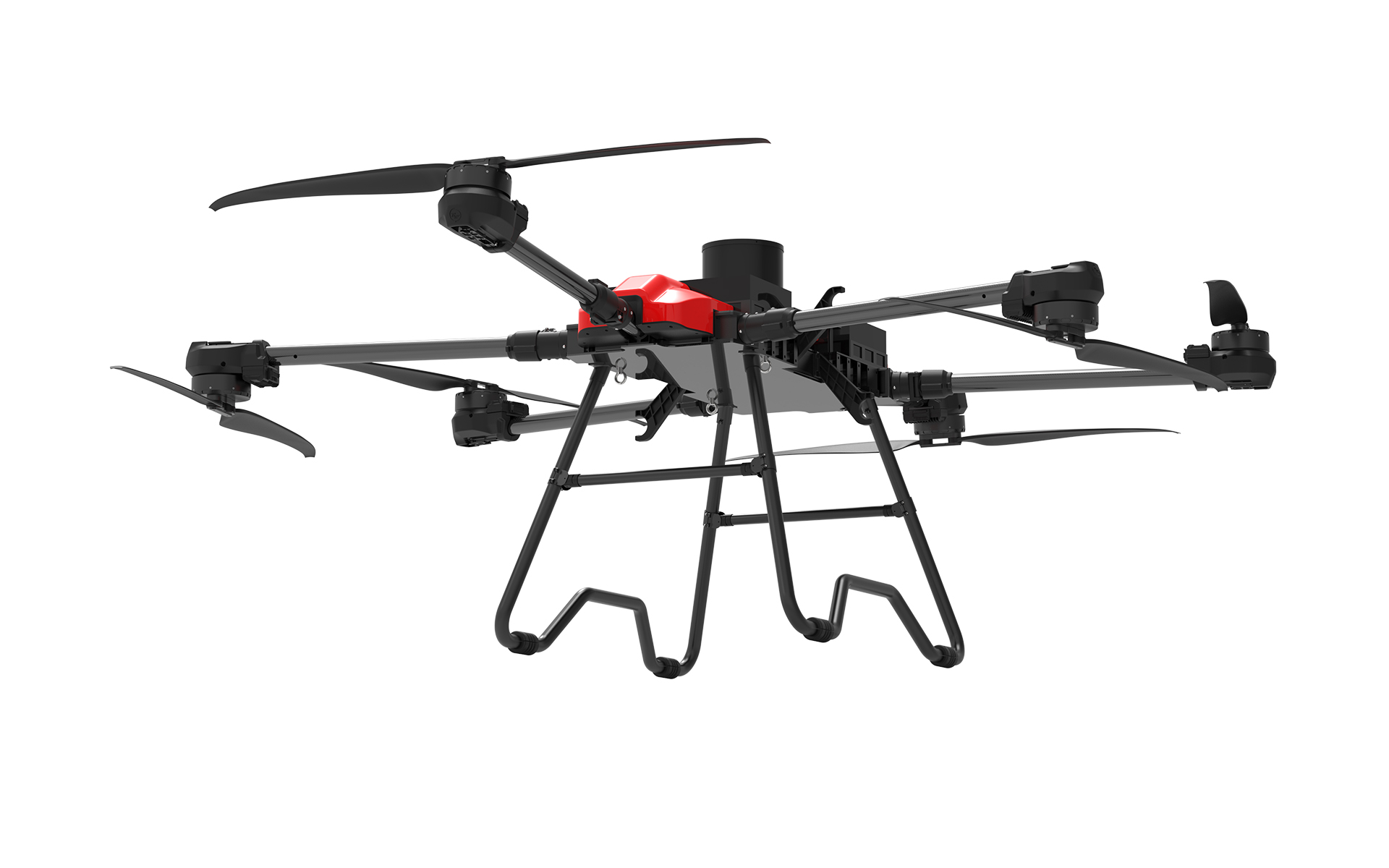

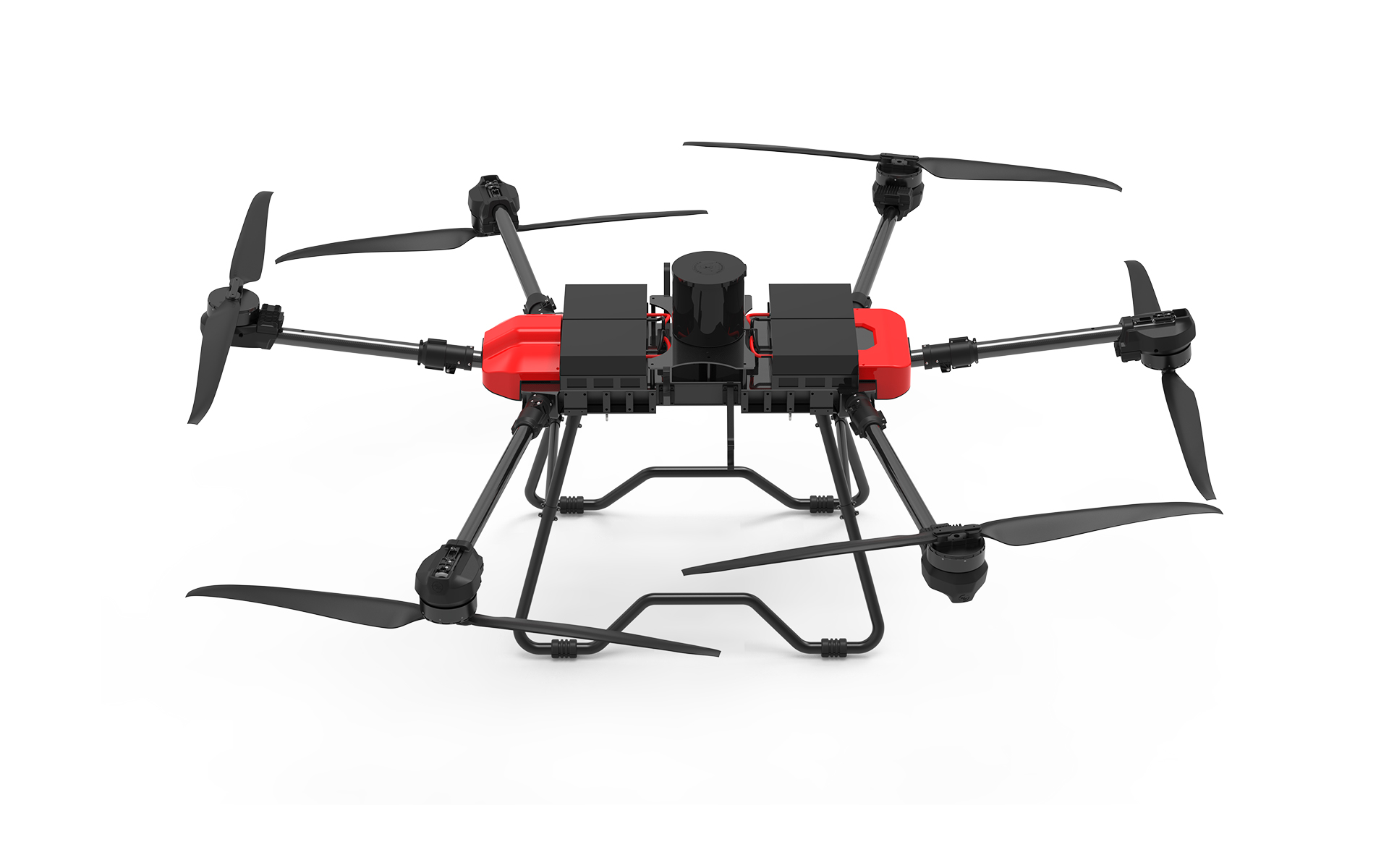

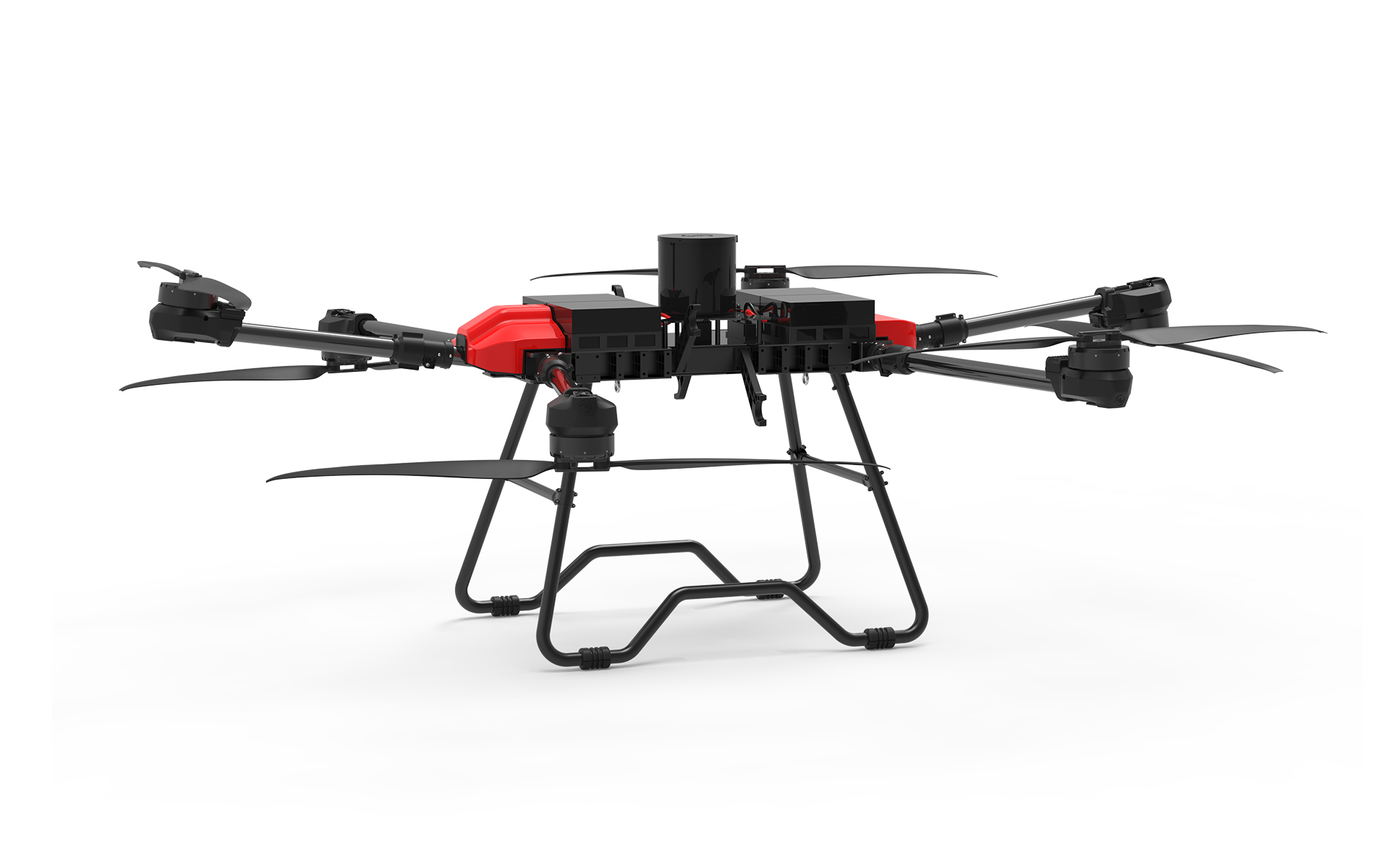

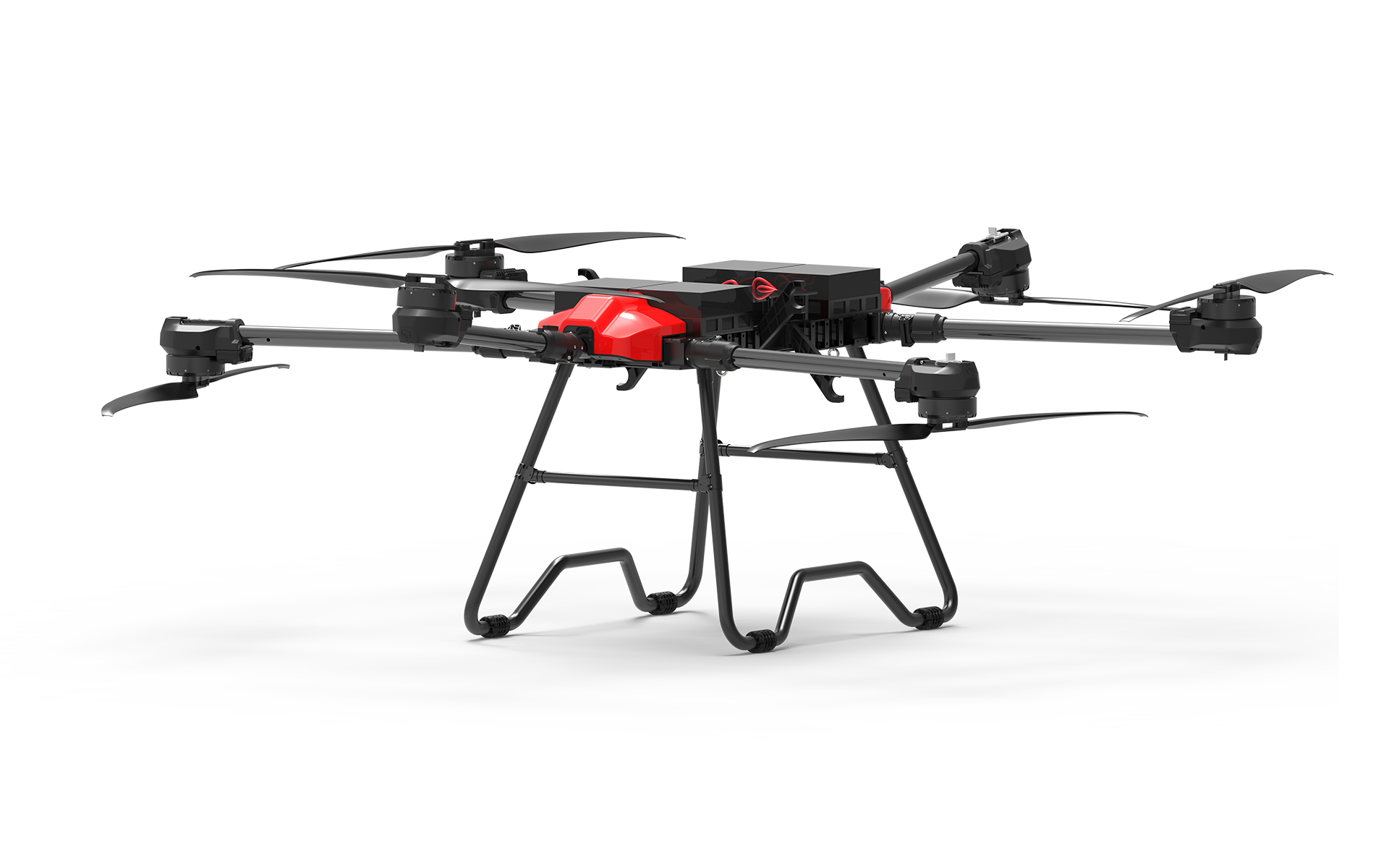

Product size: 2854 * 2416 * 1060mm (unfolded)

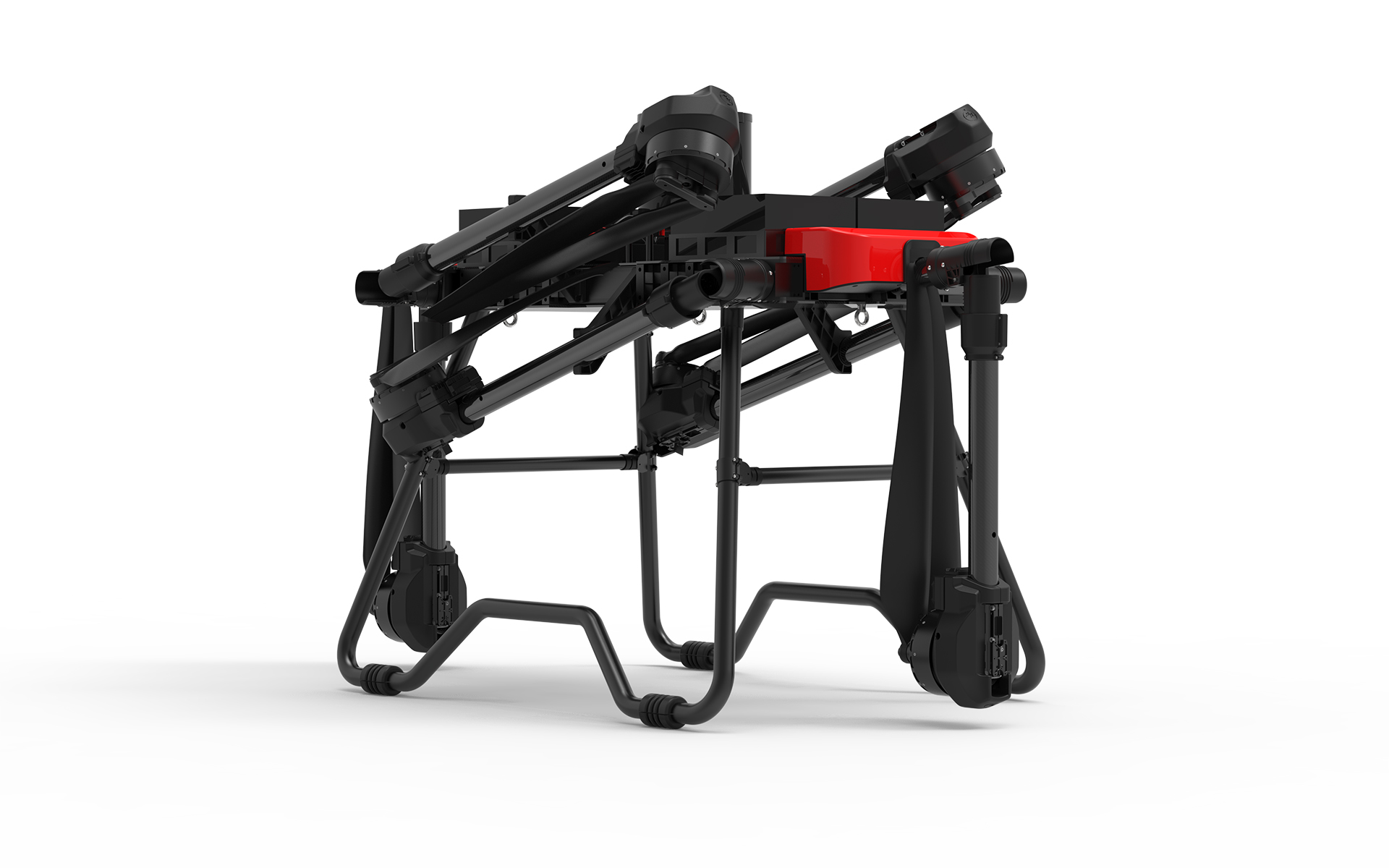

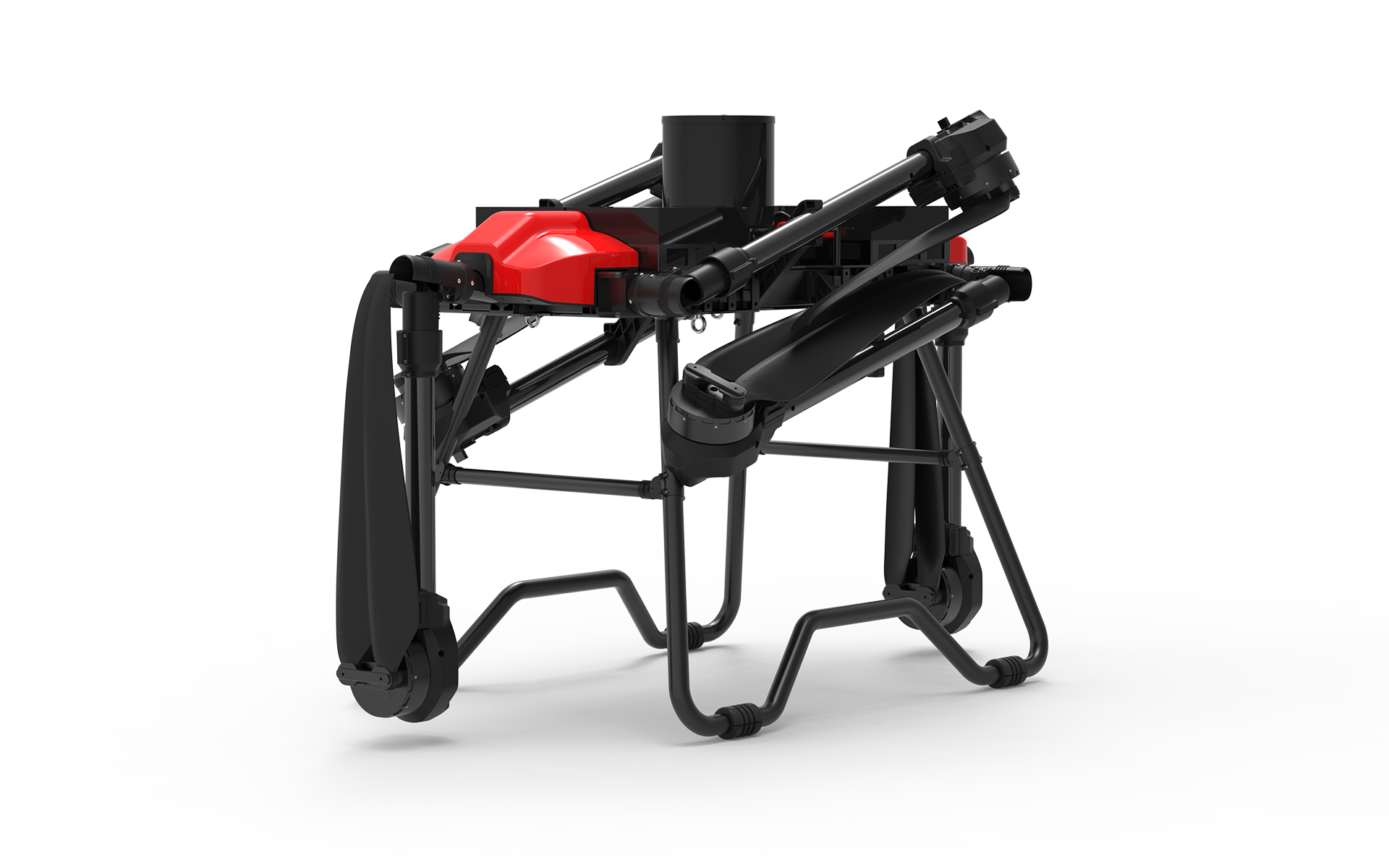

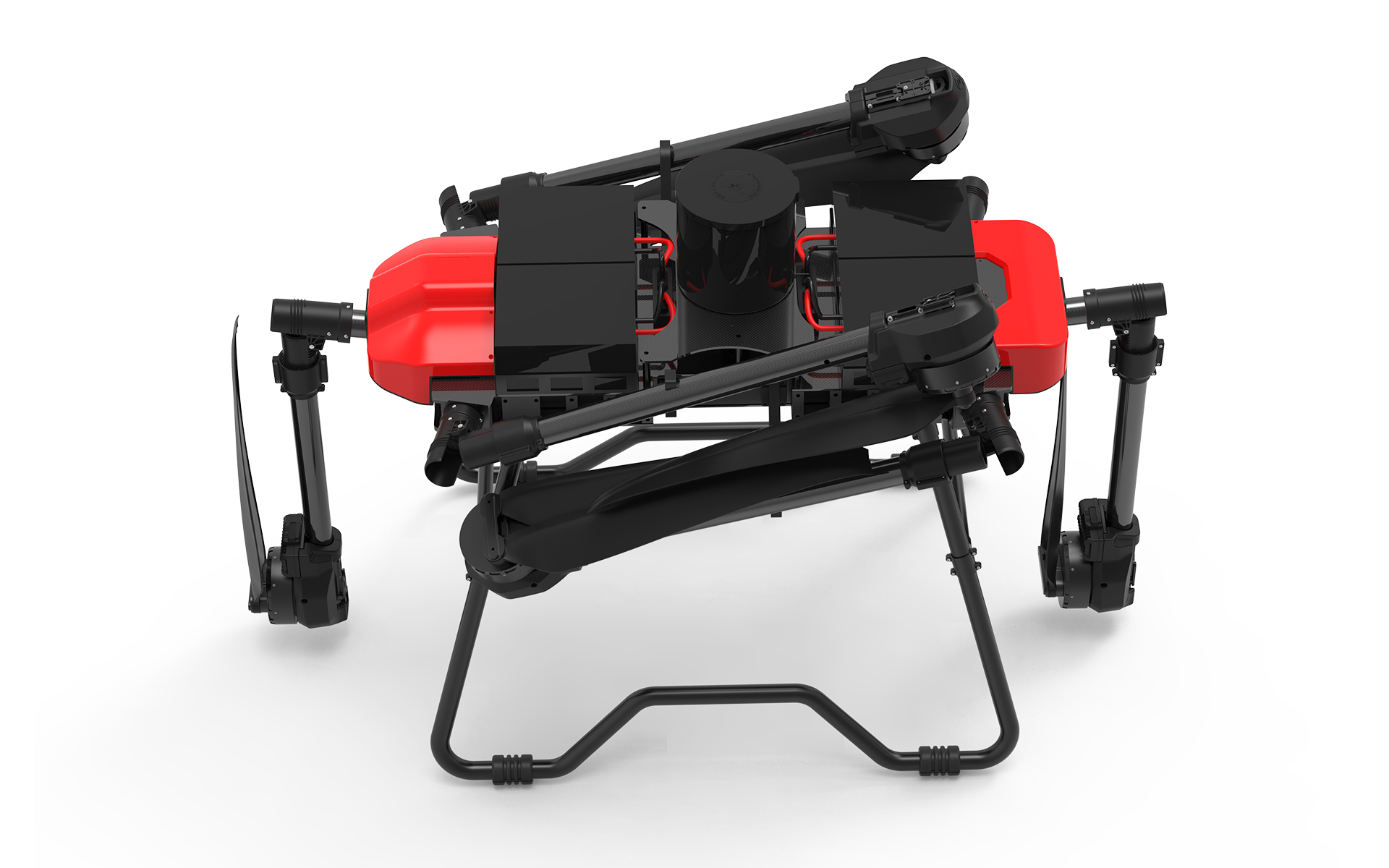

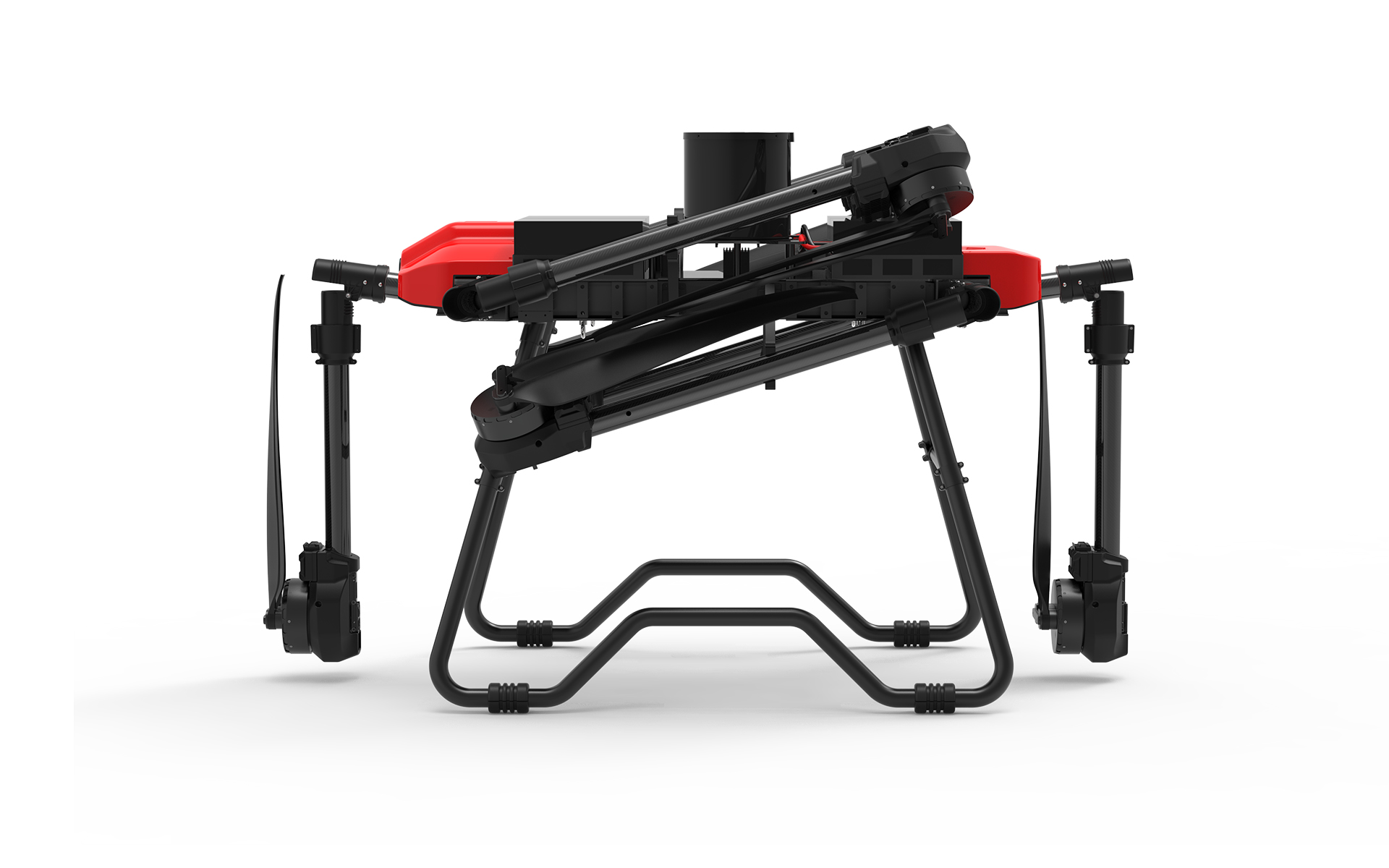

1689 * 878 * 1075mm (folded)
Product weight: 20kg (rack weight)
48kg (maximum configuration, battery not included)
≈ 85kg (including weight of four batteries)
≈ 165kg (100kg full load, takeoff weight)
Arm size: 46 * 50mm
Load capacity: 80~100kg
Battery fixing method: quick installation of four battery compartments
Compatible model: YS-F100A four electric version industry application flight platform
Flight Control: Brawl Eagle/Microgram/Polar Wing
Remote control: H16/H30/MK32
Power system: X13 (motor)
200A (electrically adjustable)
56 inches (propeller)
Battery: 18S 30000mAh * 4 (Chaohang/Haiying)
Working time:>60 minutes (unloaded, takeoff weight 85kg)
≈ 12~15 minutes (full load 100kg battery * 2, depending on actual load flight time)
≈ 25-30 minutes (fully loaded with 80kg battery * 4)
